E10-MRO

The E10 is a compact and cost effective , miniature, rubidium oscillator frequency standard that maintains the high time & frequency accuracy required for demanding applications such as telecoms, aviation, nautical and precision test and measurement .

Features

  • No drift
  • High stability
  • 2 year warranty
  • RS232 interface
  • Low phase noise to -165dBc/Hz
  • Ageing: 5x10-10 / year
  • Stability 1 x 10-11/s
  • 1PPS I/O sync.

Applications

  • Frequency calibration
  • Telecom network synchronisation
  • Broadcast
  • Cellular wireless base stations

Benefits

  • Very low cost, high performance reference
  • Fits 1U case
  • Low failure risk
  • Simple systems integration

Standard Specification:
Output Frequency 10 MHz
Output Level +10 dBm +/-3 dBm into 50 Ohms
1 PPS Output Optional
Number of Outputs 1
STS1s 5x10-11
STS10s 1.6x10-11
STS100s 5x10-12
Aging 1 Day 5x10-12
Aging 1 Month 5x10-11
Phase Noise 10Hz -85 dBc
Phase Noise 100Hz -125 dBc
Phase Noise 1Kz -140 dBc
Warm Time 5 Min
Retrace 8x10-11
PSU Nominal 12 V dc
PSU Min 11.5 V dc
PSU Max 12.5 V dc
Current 2.5 A warm up 0.5 A warmed
Supply DC
OT Min -20 C
OT Max +50 C
ST Min -55 C
ST Max +85 C

Optional Extras

Below you can choose from a range of optional extras to ensure the closest match to your requirements.


Images & Information

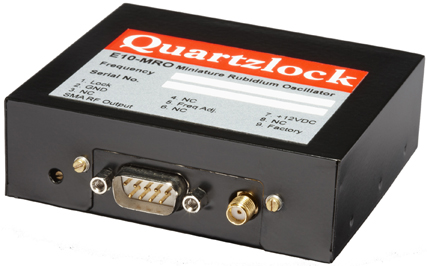

E10-MROEnlarge

A miniature, low cost, rubidium oscillator that maintains the high frequency & time accuracy required for demanding applications.
