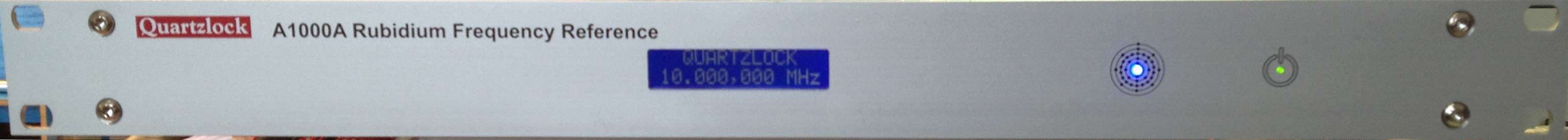

A1000A

The A1000A is based on the E10-LNA Very Low Noise Rubidium Oscillator Module which is a sub miniature atomic clock with Quartzlock’s ‘active noise filter’ technology built in. This rubidium oscillator has 100 x less drift than OCXO’s. With short term stability of 0.002ppb/s @ 100s this rubidium oscillator provides significant improvements in performance over other rubidium components.

Features

  • Ultra high performance reference
  • Multiple output options
  • Noise floor -157dBc/Hz

Benefits

  • Stability to 0.002ppb
  • Ultra low jitter
  • 100 x less drift than OCXOs

Applications

  • High performance audio systems
  • Compatible with any system that excepts an external 10MHz input
  • High stability low phase noise and low jitter systems
  • Compatible with Antelope™ and dCS™ systems








Standard Specification:
Output Frequency 10MHz (up to 100MHz)
Output Level 7dBm
Number of Outputs 1
STS1s 2x10-12
STS10s 5x10-12
STS100s 2x10-12
Aging 1 Day 5x10-12
Aging 1 Month 5x10-11
Aging 1 Year 4x10-10
Phase Noise 1Hz -110
Phase Noise 10Hz -138
Phase Noise 100Hz -152
Phase Noise 1Kz -155
Phase Noise 10Kz -158
Harmonics dBc -30
Spurious dBc -80
Warm Time 5 min
Retrace 3x10-12
PSU Nominal 12V dc
PSU Min 11V dc
PSU Max 15V dc
Current 500mA
OT Min -20
OT Max +65
ST Min -40
ST Max +85

Optional Extras

Below you can choose from a range of optional extras to ensure the closest match to your requirements.
