Quartzlock's E10-LN is Low Noise Rubidium Atomic Oscillator module with highest performance. Quartzlock's Low Noise Rubidium Oscillator employs Quartzlock's "Active Noise Filter" technology to achieve a Phase Noise specification of -115dBc/Hz at 1Hz or lower, typical short term stability of <2E-12 and typically towards <1E-12 and Spurii are <-80dBc. Warm time is 5 minutes. Retrace to 3E-11 after 24h off and 1h on. Drift is 100 x less than an OCXO. The E10-LN has an ageing figure of 5E-12/day

When powered by an external 12V dc low noise supply, this Low Noise oscillator stays cool at 7W consumption.

When mounted internally, without forced air cooling, this small module on PCB (without enclosure) measuring just 95.5 x 60 x 37mm is easy to accommodate in a 2U or 1U case. Mass: <300 grams. Volume: 15cc.

A clear cost / benefit can be demonstrated at the highest end of frequency control applications. A reduction in background noise in a system, by employing low noise rubidium, enables enhanced surveillance and monitoring performance, signals will be heard where previously "lost in the instrumentation's own noise". Put simply, reduced close in phase noise and jitter enhances any security establishments’ capability, to raise the sensitivity of reception, at a tiny fraction of the monitoring equipment cost.

As a reference for Spectrum Analyzer, signal source, direct digital synthesisers (DDS), Vector Noise Analyser (VNA), panoramic adaptor, modulation analyser and other quartz clocked products, a Low Noise Rubidium oscillator will reduce drift, synchronise all instruments to the same frequency and reduce phase noise.

The Quartzlock "brand" is a "Promise of Innovation", advanced design and excellent service. The E10-LN embodies this promise.


  • No drift
  • High stability
  • 2 year warranty
  • RS232 interface
  • Low phase noise to -115dBc/Hz @1Hz
  • Stability <2 x 10-12/s


  • Frequency calibration
  • Telecom network synchronisation
  • Broadcast
  • Cellular wireless base stations


  •  Low cost, high performance reference
  • Fits 1U case
  • Low failure risk
  • Simple systems integration

Standard Specification:
Output Frequency 10 MHz (up to 100 MHz)
Output Level +7 dBm into 50 Ohms (75 Ohms Available)
Number of Outputs 1
STS1s 2x10-12
STS10s 5x10-12
STS100s 2x10-12
Aging 1 Day 5x10-12
Aging 1 Month 5x10-11
Aging 1 Year 4x10-10
Phase Noise 1Hz -110 dBc/Hz (typical)
Phase Noise 10Hz -134 dBc/Hz
Phase Noise 100Hz -152 dBc/Hz
Phase Noise 1Kz -155 dBc/Hz
Phase Noise 10Kz -158 dBc/Hz
Harmonics dBc -30 dBc
Spurious dBc -80 dBc
Warm Time 5 min
Retrace 3x10-12
PSU Nominal 12 V dc
PSU Min 12 V dc
PSU Max 15 V dc
Current 500 mA
OT Min -20 C
OT Max +60 C
ST Min -40 C
ST Max +85 C

Optional Extras

Below you can choose from a range of optional extras to ensure the closest match to your requirements.

Images & Information

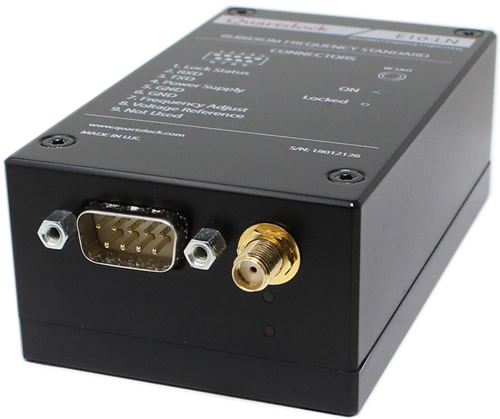

A low noise miniature, low cost, rubidium oscillator module that maintains the high frequency & time accuracy required for demanding applications.
