Quartzlock launch the next instrument in their slim-line bench range of RF distribution amplifiers.

The E5-6, based on the A5000 rack mount instrument, provides the same outstanding performance of its bigger brother but in a compact 105(w) x 125(d) x 30(h) mm form factor.

This instrument has excellent short term stability and phase noise performance ensuring that there is no derogation of the source signal. This instrument provides excellent value for money.

Features

  • Compact design
  • 1MHz - 20MHz bandwidth
  • Comprehensive specification
  • Excellent short term stability & phase noise
  • 6 outputs

 Benefits

  • Unity gain
  • 0dBm to 10dBm input
  • High stability
  • Low distortion
  • High isolation

 Applications – fixed & portable use in:

  • Industrial calibration laboratories
  • Telecoms
  • Test solutions
  • RF test bench
  • Production test

Standard Specification:
Output Frequency 1 MHz to 20 MHz
Output Level +12 dBm into 50 Ohms
Number of Outputs 6 (up to 12 available)
STS1s 2x10-13
STS10s 1.5x10-14
STS100s 3x10-15
Phase Noise 1Hz < -132 dBc/Hz
Phase Noise 10Hz < -145 dBc/Hz
Phase Noise 100Hz < -152 dBc/Hz
Phase Noise 1Kz < -158 dBc/Hz
Phase Noise 10Kz < -160 dBc/Hz
Harmonics dBc < -50 dBc
Spurious dBc < -100 dBc
PSU Nominal 12 V dc
PSU Min 11 V dc
PSU Max 14 V dc
Current 100 mA
Supply DC (or AC operation 90-240 V ac)

Optional Extras

Below you can choose from a range of optional extras to ensure the closest match to your requirements.


Option N - No Options Available


    Images & Information

    E5-X6Enlarge

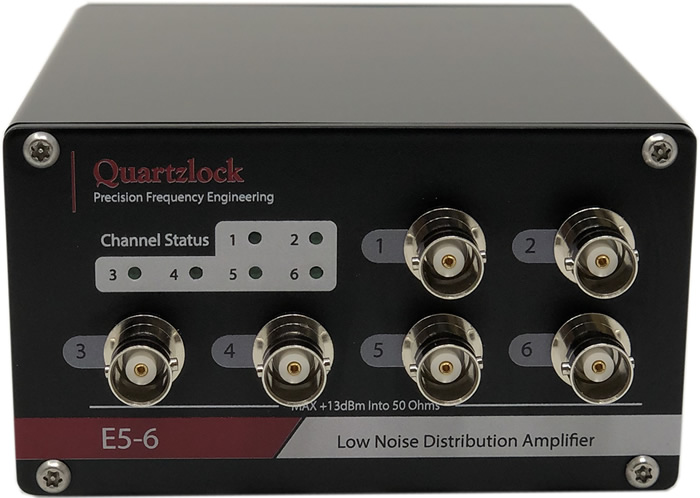

    Quartzlock launch the next instrument in their slim-line bench range. The E5-6, based on the A5000 rack mount instrument, provides the same outstanding performance of its bigger brother but in a compact 105(w) x 125(d) x 30(h) form factor.
