E10-Y8

The Quartzlock E10-Y8 is a compact simple to install low noise multi-output atomic frequency reference for use as a general purpose 10MHz rubidium frequency standard.

The E10-Y8 is a very low noise rubidium frequency reference with Phase Noise of -110dBc/Hz @ 1Hz and 2x10-12 @ 1s stability that will enable up to eight separate instruments to be referenced.

This frequency standard benefits from having Quartzlock’s SMAC (Sub Miniature Atomic Clock), and very low noise distribution amplifier technology built in, housed in a compact enclosure measuring just 103 x 55 x 122mm with a mass of <500g.

The E10-Y8 benefits from low Drift of <5x10-12/day, typically 1x10-12/day.

The E10-Y8 has a 2 year warranty

These exceptional specifications enable mission critical, interception, monitoring and surveillance of LF to Microwave signals at lowest cost and highest available performance.

Panoramic and communication receivers, spectrum analysers, network analysers, digital storage oscilloscopes, and vector network analysers will all benefit from significantly lower noise performance.

Secure communications, defence and R&D will all benefit from lower noise referencing and with up to 8 instruments locked to an identical frequency

Features

  • 10MHz multiple outputs
  • Ageing <5E-10/Year
  • 5E-11 accuracy
  • 8E-12/S @100s

Benifits

  • Atomic accuracy
  • Quick and simple to use and install
  • Higher sensitivity
  • Enables narrower bandwidth filtering
  • Improved instrument frequency accuracy and phase noise

Applications

  • Frequency referencing of interception and monitoring receive
  • Time and frequency standard for calibration and external referencing of all quartz-based instrumentation in RF and microwave laboratories to significantly reduce noise levels and improve accuracy
  • Frequency reference for counters, signal generators, spectrum, DSO, VNA, SA, and network analysers
  • Secure communications, C4, defence and R&D

Standard Specification:
Output Frequency 10 MHz (Up to 100MHz)
Output Level +10 dBm into 50 Ohms
Number of Outputs 8
STS1s 2x10-12
STS10s 5x10-12
STS100s 4x10-13
Aging 1 Day 5x10-12
Aging 1 Month 5x10-11
Aging 1 Year 4x10-10
Phase Noise 1Hz -110 dBc/Hz
Phase Noise 10Hz -140 dBc/Hz
Phase Noise 100Hz -145 dBc/Hz
Phase Noise 1Kz -155 dBc/Hz
Phase Noise 10Kz -157 dBc/Hz
Harmonics dBc -30 dBc
Spurious dBc <-80 dBc
Warm Time 5 min
Retrace <3x10-13
PSU Nominal 15 V dc
PSU Min 12 V dc
PSU Max 18 V dc
Current 1.6 A max
Supply DC
OT Min -20 C
OT Max +50 C
ST Min -40 C
ST Max +70 C

Optional Extras

Below you can choose from a range of optional extras to ensure the closest match to your requirements.


Images & Information

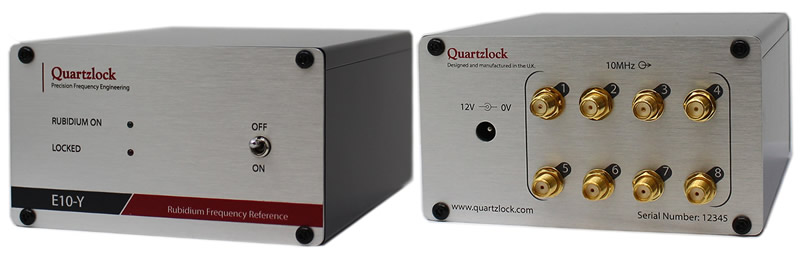

E10-Y8Enlarge

Compact simple to install low noise multi-output atomic frequency reference for use as a general purpose 10MHz rubidium frequency standard. This very low noise rubidium frequency reference will enable up to eight separate instruments to be referenced. This frequency standard benefits from having Quartzlock’s SMAC (Sub Miniature Atomic Clock), and very low noise distribution amplifier technology built in.
