A6-ANF

The A6-ANF Active Noise Filter has an Ultra Low Noise SC OCXO oven-controlled quartz oscillator which is used in Quartzlock’s Active Noise Filter Clean Technology to filter input reference signals. The A6-ANF provides an ultra low noise, very high shortterm stability filtered output.


Standard Specification:
Output Frequency 10 MHz
Output Level +7 dBm into 50 Ohms
Number of Outputs 1
Phase Noise 1Hz -110 dBc/Hz
Phase Noise 10Kz -160 dBc/Hz
PSU Nominal 24 V dc
PSU Min 14 V dc
PSU Max 30 V dc
Current 150 mA
Supply DC

Optional Extras

Below you can choose from a range of optional extras to ensure the closest match to your requirements.


Images & Information

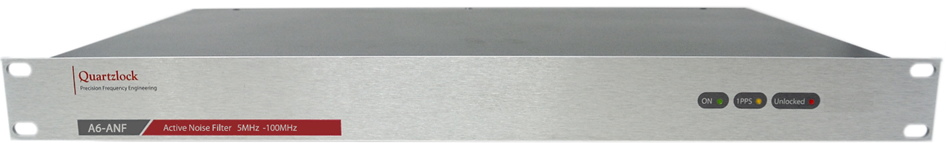

A6-ANFEnlarge

The A6-ANF Active Noise Filter has an Ultra Low Noise SC OCXO oven-controlled quartz oscillator which is used in Quartzlock’s Active Noise Filter Clean Technology to filter input reference signals. The A6-ANF provides an ultra low noise, very high shortterm stability filtered output.
